Cheatsheet: LLM Settings

A quick reference for understanding and tuning the key parameters that affect large language model (LLM) behavior — including temperature, top-p, max tokens, and more. Perfect for anyone working with APIs like OpenAI, Anthropic, or Mistral.

Prasanna Arjunan • Feb 9, 2025 • 9:20 AM SGT

LLM Settings Cheatsheet

When working with large language models (LLMs), you can configure a few key settings to control how the model behaves. These settings shape how random, verbose, or repetitive the outputs are, and are essential when developing with models like GPT-4-turbo, Claude, Gemini, or open-source LLMs. In this cheatsheet, we use GPT-4-turbo as our reference example, though the concepts apply broadly across most providers.

Temperature

Controls the randomness of the model's output. A lower value (e.g., 0.2) makes the output more predictable and focused, while a higher value (e.g., 0.8) increases creativity and diversity. A value of 0 makes the model deterministic, meaning that for the exact same prompt, it will always produce the exact same output.

Note: While temperature = 0 aims for determinism, if two or more next tokens have the exact same highest probability, the specific token chosen might still vary depending on the model's internal tie-breaking mechanism, leading to slight non-determinism.

As temperature gets higher (e.g., closer to the maximum allowed, typically hits a ceiling at 2.0 on most platforms), all tokens eventually become almost equally likely to be selected. This results in highly random, often nonsensical, output.

Use low values for fact-based tasks or summarization.
Use high values for brainstorming, writing poetry, or creative content.

Top P (Nucleus Sampling)

Imagine the model is choosing the next word to complete a sentence. Top P defines a dynamic set of the most probable next words from which the model can choose. It does this by considering only the words whose combined probabilities reach a certain threshold (the `p` value).

Low top_p values (e.g., 0.1): The model becomes very conservative, sticking only to the very safest, most obvious next words. This makes the output very focused and specific.

Example: After "The dog is...", a low `top_p` would most likely pick "barking" or "running" because those are very common associations.

High top_p values (e.g., 0.9): The model considers a wider range of probable words, allowing for more diverse and varied output.

Example: After "The dog is...", a high `top_p` might still pick "barking" or "running," but it could also explore options like "cute," "sleepy," or "friendly," adding more variety.

Tip: It's recommended to tune either `temperature` or `top_p`, not both.

Max Tokens

Sets the maximum number of tokens (words and symbols) the model can generate in a response. Useful for limiting output length or controlling cost.

Important Note: Reducing `max_tokens` simply tells the model to stop generating once the limit is reached. It does *not* force the model to be more concise or stylistically succinct within the given length. If you need short, precise outputs, you'll still need to engineer your prompt accordingly. This hard stop is especially important for structured prompting techniques (like ReAct), where you might want the model to stop before generating unnecessary "thinking" tokens after the desired response.

Some Other Settings to Know About

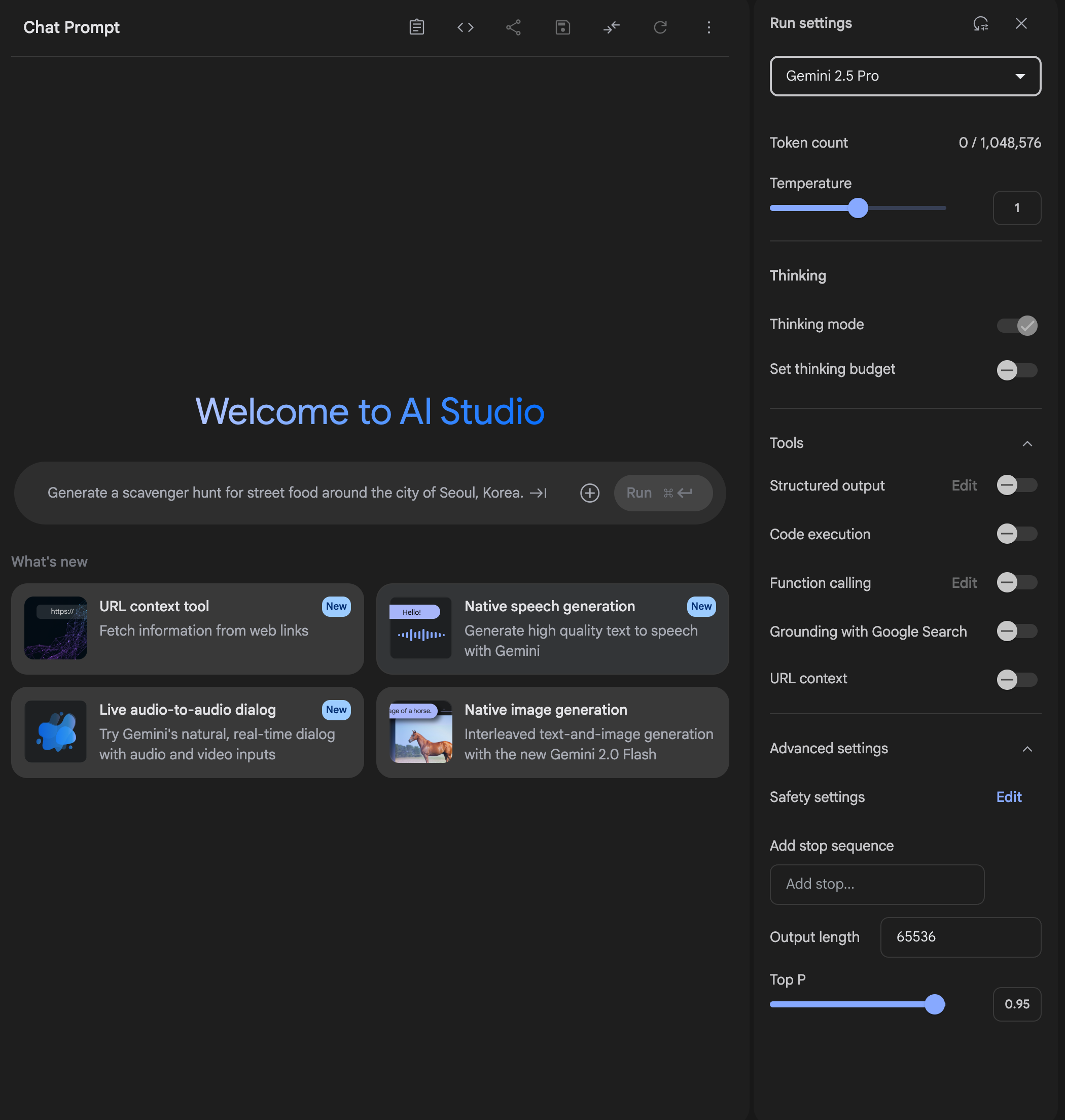

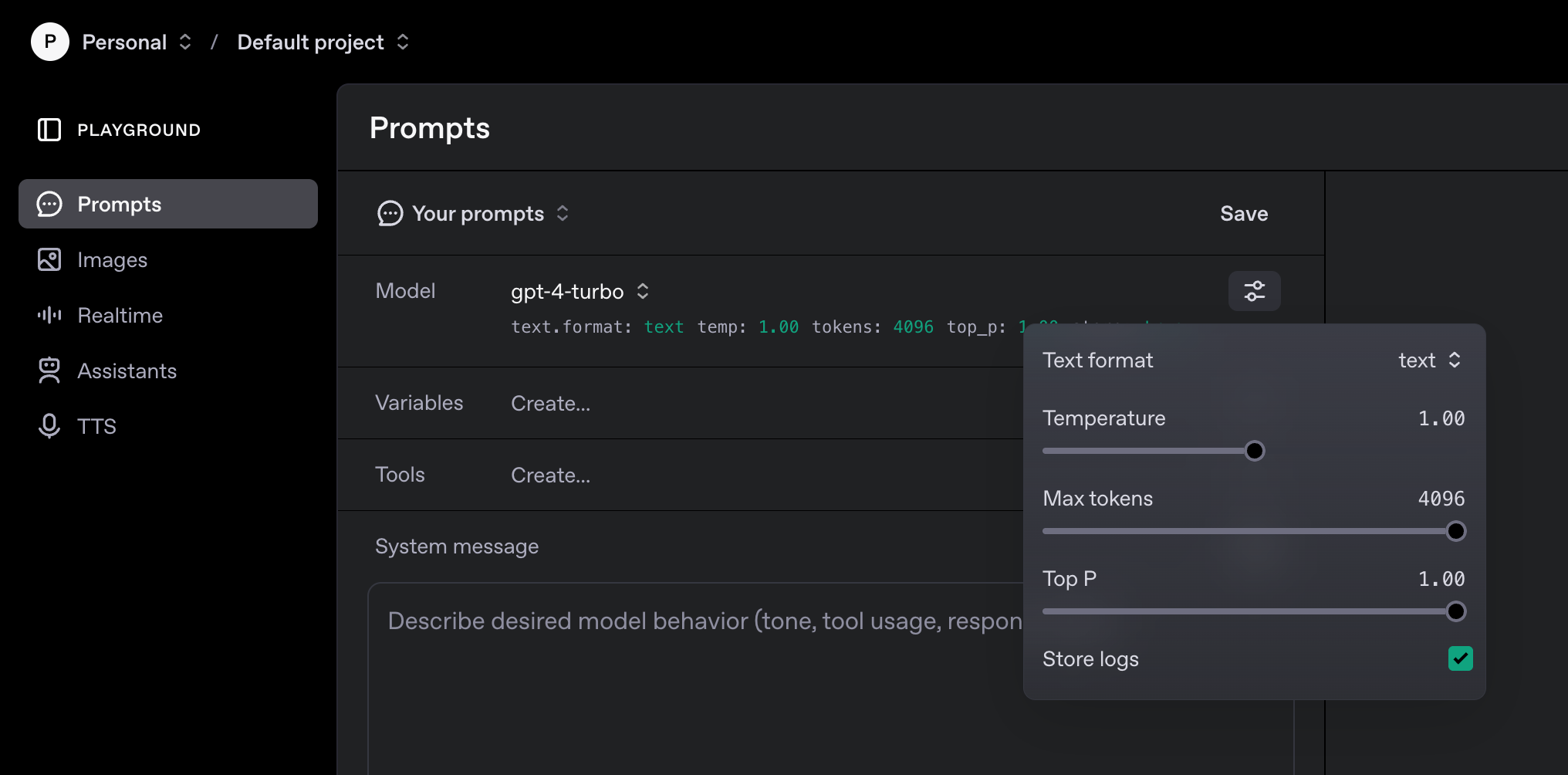

While many platforms (like ChatGPT Playground) only expose core settings like temperature, top_p, and max_tokens, there are other useful parameters you may encounter in API calls or advanced tools. These give you more control over the structure, diversity, and behavior of model outputs.

Top K

Top K limits the model’s output by explicitly setting a maximum number (K) of the most probable next tokens to consider at each step. The model will then only select its next token from this restricted set of K options. This technique helps to reduce the generation of incoherent or nonsensical text by focusing on the model's highest-confidence predictions.

Low top_k values (e.g., 1): A top_k of 1 means the model always selects the single most probable token from its entire vocabulary. This is known as "greedy decoding" and leads to highly predictable, conservative, and often repetitive output.
High top_k values (e.g., 40 or higher): The model considers a larger pool of the most probable words. This allows for more variety and diversity in the output, as it has more options to choose from within that top K set. Generally, higher values lead to more random responses, while lower values lead to less random responses.

Illustrative Example: Filtering with Top K

Imagine the model has just produced "I'll have the...", and it calculates the following probabilities for the subsequent word:

sandwich: 0.6
coffee: 0.3
salad: 0.2
juice: 0.1
tea: 0.05
water: 0.01
soda: 0.003
... (and many other words with decreasing probabilities)

If top_k is set to 3, the process unfolds as follows:

The model identifies the three words with the highest probabilities: {sandwich (0.6), coffee (0.3), salad (0.2)}.
It then re-normalizes the probabilities solely among these three words so that their sum equals 1. (For instance, their original sum is 0.6 + 0.3 + 0.2 = 1.1. After re-normalization, the new approximate probabilities would be: sandwich ~0.54, coffee ~0.27, salad ~0.18.
Finally, the next word is sampled from this re-normalized distribution, ensuring the selection is strictly confined to these top 3 candidates.

This mechanism effectively "limits the output" by excluding any words beyond the K most probable tokens from the original distribution. It allows for a strategic balance between prioritizing the most likely and coherent tokens versus enabling more creative or diverse sampling within the defined scope.

The default top_k value can differ across models and providers; however, 40 is a frequently encountered default setting.

Interaction with other settings: When Top K, Top P, and Temperature are all used, the model typically first applies Temperature to scale the initial token probabilities. Then, Top K filters this temperature-scaled set. Subsequently, Top P further refines the tokens remaining within that Top K set. Finally, the model samples the ultimate output token from this filtered and temperature-influenced collection.

Tip: Top K offers a more direct way to control the sheer number of token options, whereas Top P adapts more dynamically to the underlying probability distribution. Experimentation is key to discovering which method best suits your specific task requirements.

Stop Sequences

What it is: A stop sequence is a specific string (like ---END--- or STOP) that tells the model, “stop generating text here.”

Once the model outputs that string — even partially — it immediately halts its response. You choose stop sequences that the model won’t accidentally generate unless you guide it to.

Example

Your Prompt:
List three facts about the Moon:
1.
2.
3.
---END---

Stop Sequence: ---END---

Model Output:
1. The Moon is Earth’s only natural satellite.
2. It affects Earth’s tides.
3. Its surface is covered in craters.
---END---

When ---END--- is reached, the model stops — no extras, no rambling.

Why it's useful

Structured Output: Force clean endings to lists, code, JSON, or tables.
Prevent Run-On: Stop the model from adding explanations or continuing unnecessarily.
Control Cost: Saves tokens by stopping output when your task is done.

Tip: Design your prompt to include the stop sequence as a natural closing cue — that’s when it works best.

Frequency Penalty

This setting reduces the chances of the model repeating the same word multiple times by applying a penalty each time a token is repeated. The more frequently a word appears in the prompt or output, the less likely it is to appear again.

Use it when: You want more varied word choices and less repetition.

Example

Without Frequency Penalty:
"The cat sat on the cat mat. The cat was fluffy."

With High Frequency Penalty:
"The feline sat on the pet mat. The animal was fluffy."

In this example, cat appears repeatedly without a penalty. When frequency penalty is applied, the model opts for alternatives like feline and animal, promoting word variety.

Presence Penalty

This setting discourages the model from repeating any word that has already appeared — even if it was used just once. It’s useful when you want the model to introduce 'new topics, ideas, or phrasing', rather than circling back to the same subject.

Use it when: You want more exploration or diversity in subject matter.

Example (continued from frequency penalty)

Earlier Output with Repetition:
"The cat sat on the cat mat. The cat was fluffy."

With Frequency Penalty:
"The feline sat on the pet mat. The animal was fluffy."

With Presence Penalty:
"The dog lounged on the mat. Birds chirped nearby."

Explanation: The frequency penalty helped vary the wording around "cat," but the presence penalty went further — it avoided the topic altogether by introducing dog and birds. This illustrates how presence penalty nudges the model to explore entirely new ideas.

Context Window

The context window is the maximum number of tokens an LLM can "see" at once. It includes both your input prompt and the model’s output. If your prompt is too long, earlier parts may be truncated or ignored.

Why it matters: If your prompt + expected output exceeds the model’s limit, the beginning of your input will be cut off — and the model won’t 'remember' it. This can lead to loss of context or misunderstandings.

Example

Model: GPT-4-turbo
Max context window: 128,000 tokens

Your prompt: 100,000 tokens
Max response: 128,000 - 100,000 = 28,000 tokens

What happens if you exceed it? If your prompt is longer than 128,000 tokens (say, a huge conversation history or multi-document input), the model will drop the oldest parts to stay within the limit — which can lead to loss of context or misunderstandings. Always plan prompt length and expected output size carefully.

Tips

Defaults are often: temperature = 1, top_p = 1
For reproducibility (if supported), use a fixed seed.
Use logprobs to inspect how confident the model is in its predictions (advanced use).

Example Setup

{
  model: "gpt-4-turbo",
  temperature: 0.7,
  top_p: 1,
  max_tokens: 500,
  stop: ["\n###"],
  frequency_penalty: 0,
  presence_penalty: 0.6
}

Understanding and tuning these settings helps you get more reliable, creative, or structured results depending on your application. All examples in this series use GPT-4-turbo unless otherwise noted.

How to Set These Parameters Using OpenAI's API

When using the openai API directly, you set parameters like temperature, top_p, max_tokens, and others in the request body. Here's an example:

curl https://api.openai.com/v1/chat/completions \
  -H "Authorization: Bearer YOUR_API_KEY" \
  -H "Content-Type: application/json" \
  -d '{
    "model": "gpt-4-turbo",
    "messages": [
      { "role": "user", "content": "Write a haiku about space" }
    ],
    "temperature": 0.7,
    "top_p": 0.9,
    "max_tokens": 100,
    "stop": ["###"],
    "frequency_penalty": 0.3,
    "presence_penalty": 0.6
  }'

You can’t change the context window — it’s fixed by the model. For example, gpt-4-turbo supports up to 128,000 tokens.

If your input messages plus expected output exceed that limit, the model will truncate earlier content or return an error. Always plan prompt length and expected output size carefully.

Tip: Choose a Model That Matches Your Context Needs

Some models support larger contexts than others. Consider these:

GPT-4 Turbo: 128,000 tokens (OpenAI Docs)
Claude 3 Opus: up to 200,000 tokens (Anthropic Docs)
Gemini 1.5 Pro: rup to 2 million tokens (Google Vertex AI Docs) (Google Vertex AI Docs)
LLaMA 3.1: 128,000 tokens (Meta Docs) (HuggingFace LLaMA models)

Choose your model based on your context and task complexity. You don’t always need the biggest window — just the right one for the job.

Extra Insights

What’s a “Token”?

A token is a chunk of text the model reads — not always a full word. It could be:

a word: "dog"
part of a long word: "un" + "break" + "able"
punctuation: ".", "!", ":"

Fun fact: "ChatGPT" is one token, but "antidisestablishmentarianism" may be broken into 5+ tokens depending on the tokenizer.

Frequency vs Presence Penalty (Quick Tip)

While both settings help reduce repetition, they affect generation slightly differently:

Frequency Penalty – Discourages repeating the same words too often. Great for reducing word-level repetition.
Presence Penalty – Encourages introducing new concepts or ideas. Useful when you want more novelty in output.

Rule of thumb: Use frequency_penalty to vary phrasing; use presence_penalty to push for fresh, original content.

Inference Settings vs. Model Weights: Don’t Be Confused!

It’s easy to mix up terminology, so here’s a quick distinction:

Model Parameters (or Weights): These are the billions of internal values learned during training — they define what the model “knows.” You don’t control or modify these when using OpenAI, Claude, or similar APIs.
Inference Settings: These are the dials you adjust at runtime — like temperature, top_p, max_tokens, etc. They guide how the model behaves when generating text. This cheatsheet focuses on these.

Temperature vs. Top P: What’s the Difference?

Both temperature and top_p influence how random, creative, or predictable the model’s output is — but they work in different ways.

Temperature: Reweights Probabilities (Encourages or Discourages Risk)

Temperature controls how confident the model feels about its next word:

Low temperature (e.g. 0.1 – 0.3): Very focused and predictable — the model chooses the safest, most likely words.
High temperature (e.g. 0.8 – 1.5): Loosens things up — the model may take creative risks and choose less likely words.

Think of it as: Sharpening or softening the model’s decision-making. Lower values = cautious. Higher values = experimental.

Top P: Filters by Cumulative Probability (Narrows the Choice Pool)

Top P controls how many next-word options the model considers — based on their combined probability:

Low top_p (e.g. 0.1 – 0.3): Only the highest-probability words are considered — responses are tighter and more focused.
High top_p (e.g. 0.9 – 1.0): A broader set of words is eligible — adding more variety and surprise.

Think of it as: Trimming the word list before picking. Lower values = small, safe shortlist. Higher values = bigger basket of ideas.

Summary

Temperature: Adjusts risk-taking by reshaping probabilities — useful for general creativity control.
Top P: Filters token choices by total confidence — great for controlling diversity while staying grounded.

Tip: Start by adjusting just one — either temperature or top_p — for more predictable tuning.

Interaction of Sampling Parameters: Temperature, Top P, & Top K

Temperature, Top P, and Top K all contribute to controlling the randomness and diversity of an LLM's output. While they influence similar aspects of generation, they operate at different stages of the token selection process and can have profound combined effects. Understanding their typical order of operation is key.

How They Combine: The Sampling Pipeline

When multiple sampling parameters are active (as in many advanced LLM APIs), the model typically follows a specific pipeline for selecting the next token:

Initial Probability Calculation: The LLM first calculates the raw "likelihood" (unnormalized log probabilities) for every single word in its vocabulary to be the next token, based on the input prompt so far.
Temperature Scaling (First Influence): Temperature is then applied. It works by scaling these initial log probabilities.
- Lower Temperature: Amplifies the differences between high and low probabilities, making the most likely tokens even more dominant, resulting in a sharper, more "confident" probability distribution.
- Higher Temperature: Reduces the differences between probabilities, flattening the distribution and giving less likely tokens a relatively higher chance, leading to a more "spread out" probability landscape.
This temperature-scaled distribution is what Top K and Top P then operate on.
Top K Filtering: From the temperature-scaled probabilities, Top K selects a fixed number (K) of the very highest probability tokens. All other tokens are removed from consideration.
Top P Filtering: Next, Top P further refines this Top K filtered set. It identifies the smallest group of remaining tokens whose combined (cumulative) probabilities reach or exceed the p threshold. Any tokens outside this group are then excluded.
Re-normalization and Sampling: The probabilities of the final, filtered set of tokens (those that passed both Top K and Top P after Temperature scaling) are re-normalized so they sum to 1. The model then randomly samples the next token from this final, refined distribution.

What Happens at Extreme Settings:

At extreme values, one sampling setting can override or make others irrelevant, effectively defining the generation behavior:

If temperature is 0: Top K and Top P generally become irrelevant. Because temperature=0 leads to perfectly sharp probabilities where one token is overwhelmingly dominant (greedy decoding), the model will almost always pick that single most probable token regardless of how Top K or Top P might try to filter.
If top_k is 1: Temperature and Top P also become largely irrelevant. Since Top K forces the model to only consider the single highest probability token, there's no range for Temperature to spread or Top P to filter. also become largely irrelevant. Since Top K forces the model to only consider the single highest probability token, there's no range for Temperature to spread or Top P to filter.
If top_p is 0 (or very small): Similar to top_k=1, most implementations will then effectively consider only the single most probable token, making temperature and top_k largely irrelevant.
If temperature is extremely high (e.g., 2.0): It can make all tokens virtually equally probable. In such cases, while Top K and Top P might still apply their filters, the ultimate selection from the remaining set will be highly random, approximating a uniform distribution.
If top_k is very large (e.g., the size of the model's entire vocabulary): It becomes effectively irrelevant for filtering, as almost all tokens with any probability would be included in the K set.
If top_p is 1: It also becomes effectively irrelevant for filtering, as all tokens with non-zero probability would be included, as their cumulative probability will sum to 1.

Beyond the Basics: Explore API Documentation

This cheatsheet covers the most commonly used and impactful settings. However, for advanced use cases or fine-grained control, always refer to the official API documentation from your LLM provider. These sources include:

A complete list of available parameters
Exact value ranges, defaults, and behavior
Advanced features like logit_bias, response_format, tool_choice, and more
Model-specific quirks or experimental settings

Here are direct links to some of the most popular API references:

Checking the docs ensures you're using the latest features correctly and helps avoid surprises from undocumented behavior.
